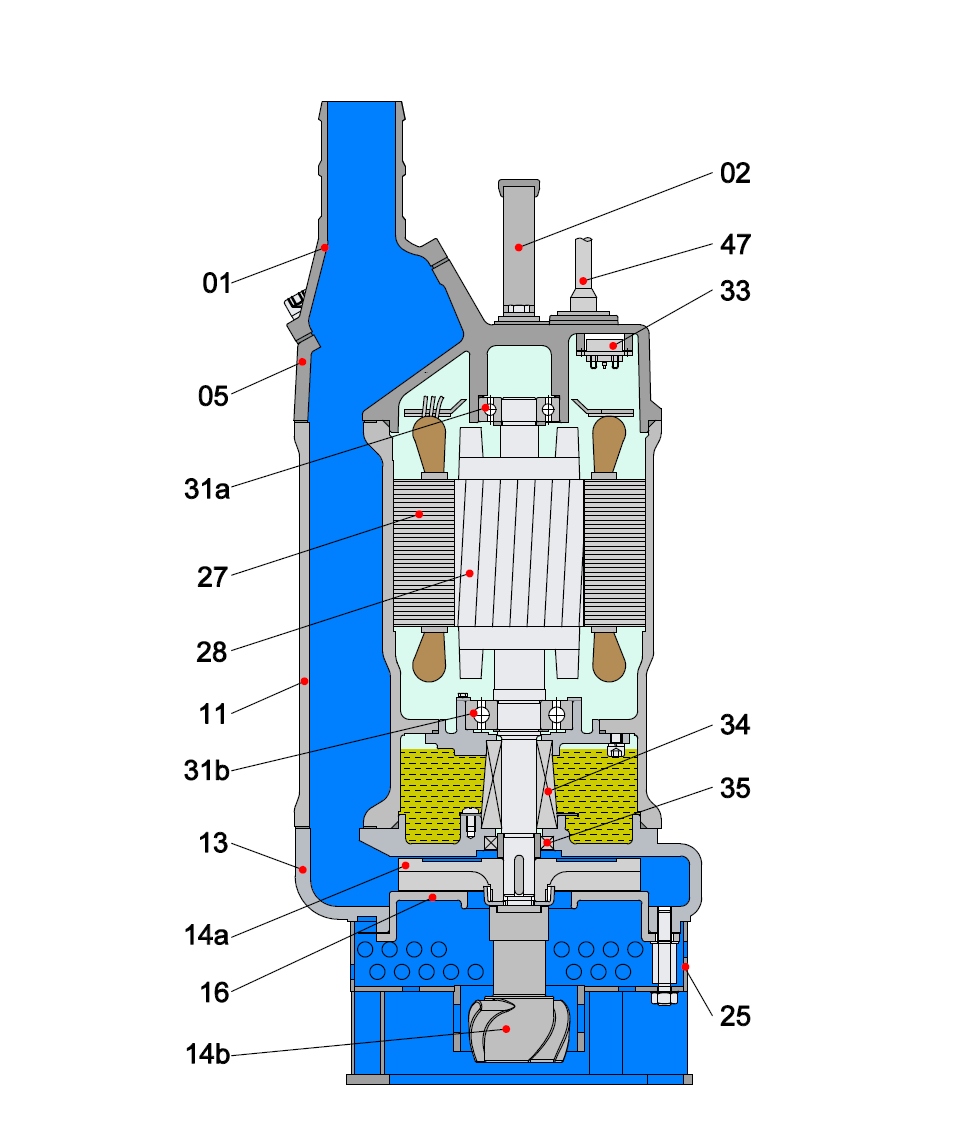

Structure Characteristics: The Agitator Pump KBD Series is a cast iron made, heavy-duty slurry pump employinig the KBZ Series as the base. An agitator is provided to assist smooth suction of the pumping fluid. The side-flow, top-discharge design keeps the motor cooling even if the pump is operated continuously with its motor exposed in air, and it makes the pump easier to be placed in a confined space. This pump is suitable for transferring or draining bentonite slurry used for slurry drilling, draining slurry mixed water in civil engineering works or foundation works.
Application: Civil engineering Mines, quarries, coal mine & slurries Sewage treatment plants General pumping purposes

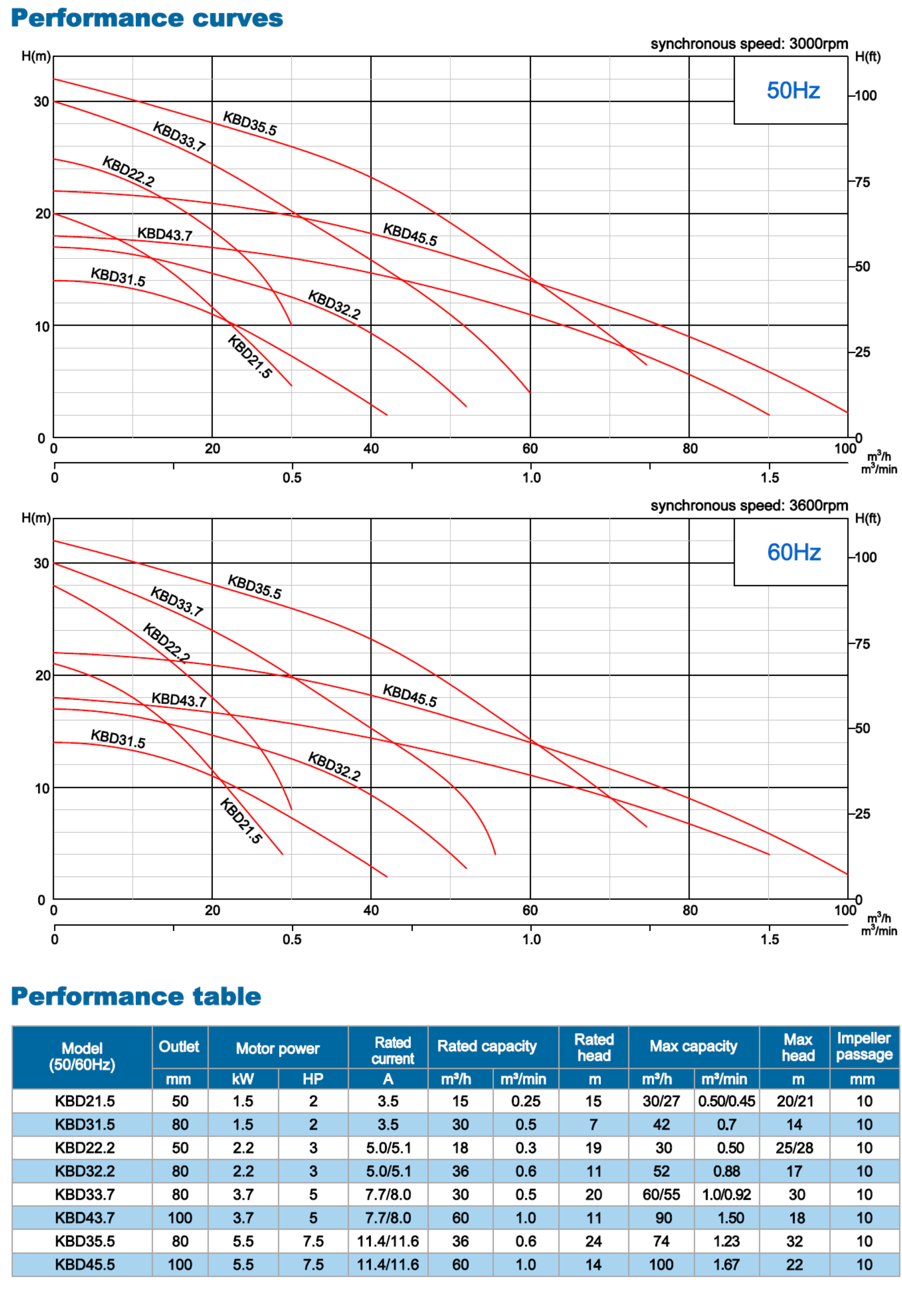

Specification: Capacity: up to 100 m³/h Head: up to 32 meters Power: 1.5kW (2HP) to 5.5kW (7.5HP) Power supply: Three phase 400V ± 10%, 50Hz 380V ± 10%, 60Hz Insulation class: F Protection class: IP68 Cable length: 8m Water temperature: up to 40℃ Max.water depth: 25m
