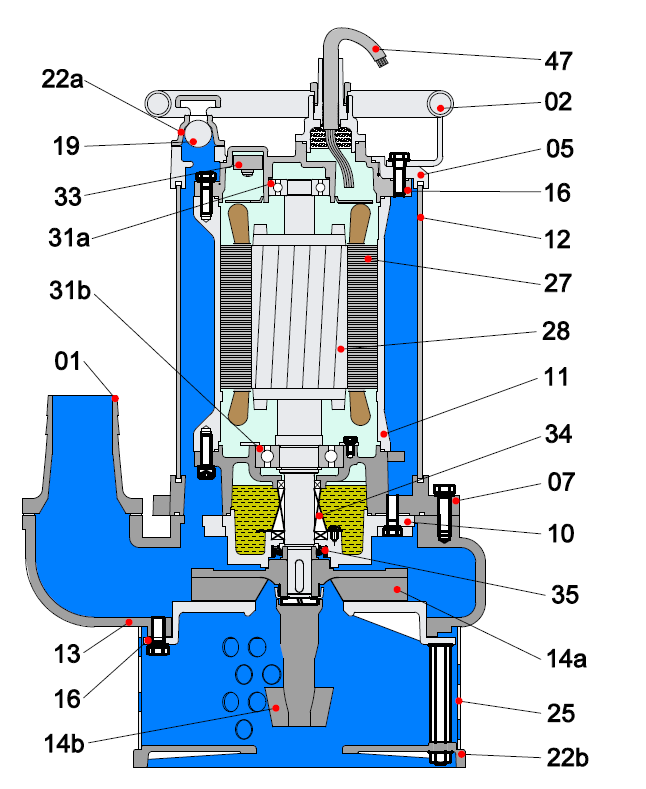

Structure Characteristics:
NTZ series is submersible slurry pump with 4-pole motor for increased lifetime and greater convenience. High chrome alloy impeller combined with agitator is designed for pumping heavy slurry. A cooling water jacket allows the pump to operate at low water level for extended period of time without any fear of overheating.
Application:
Civil engineering
Mines, quarries, coal ore & slurries
Sewage treatment plants
General pumping purposes
Pumping fluid: sludge, liquid-containing
mud and bentonite

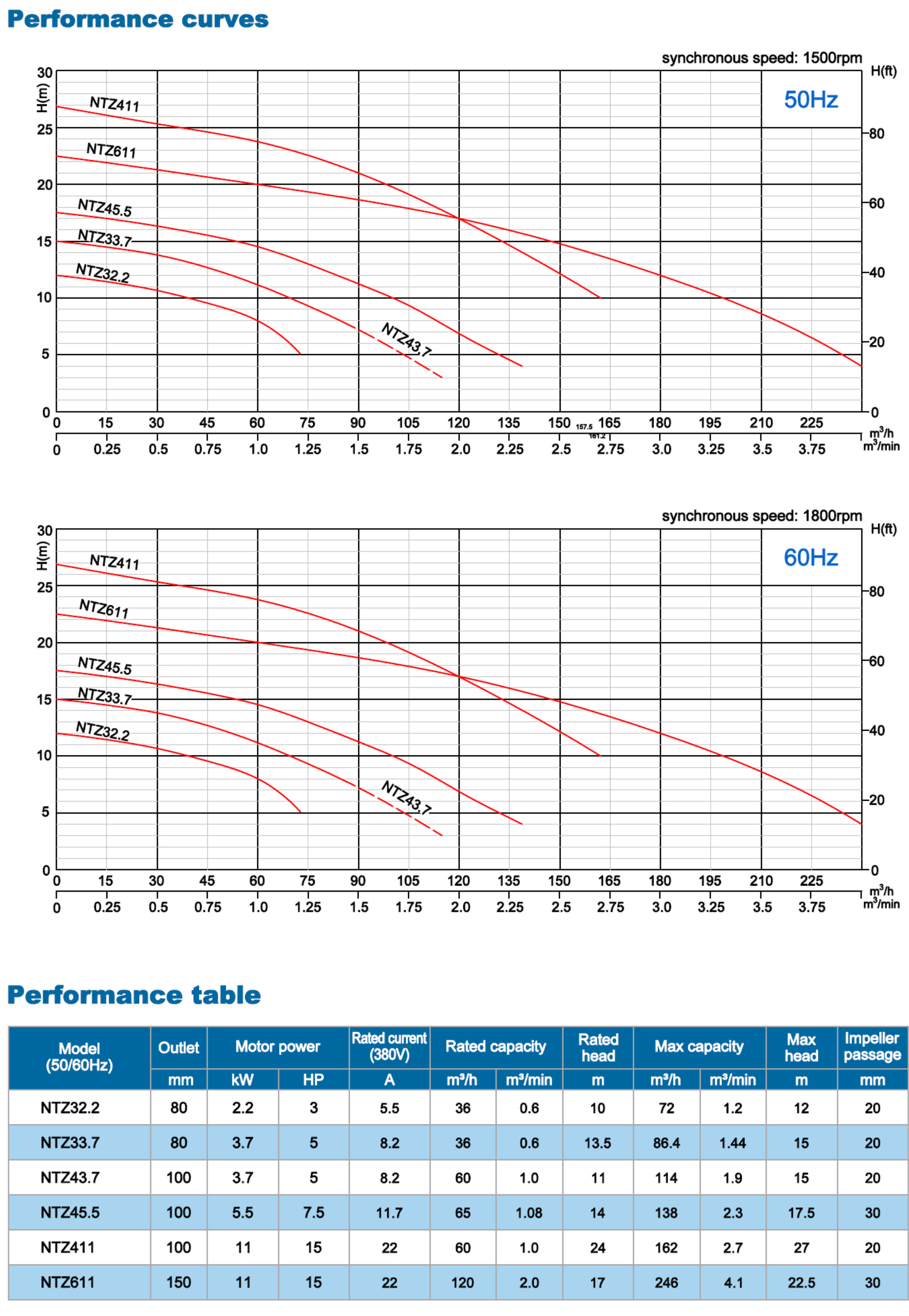

Specification:
Capacity: up to 246m³/h
Head: up to 27 meters
Discharge: 80mm(3'') to 150mm(6'')
Power: 2.2kW (3HP) to 11 kW (15HP)
Power supply: three phase 380V ± 10%, 50Hz
380V ± 10%, 60Hz
Insulation class: F
Protection class: IP68
Cable length: 8m
Water temperature: up to 40℃
Max. water depth: 20m
