Structure Characteristics:

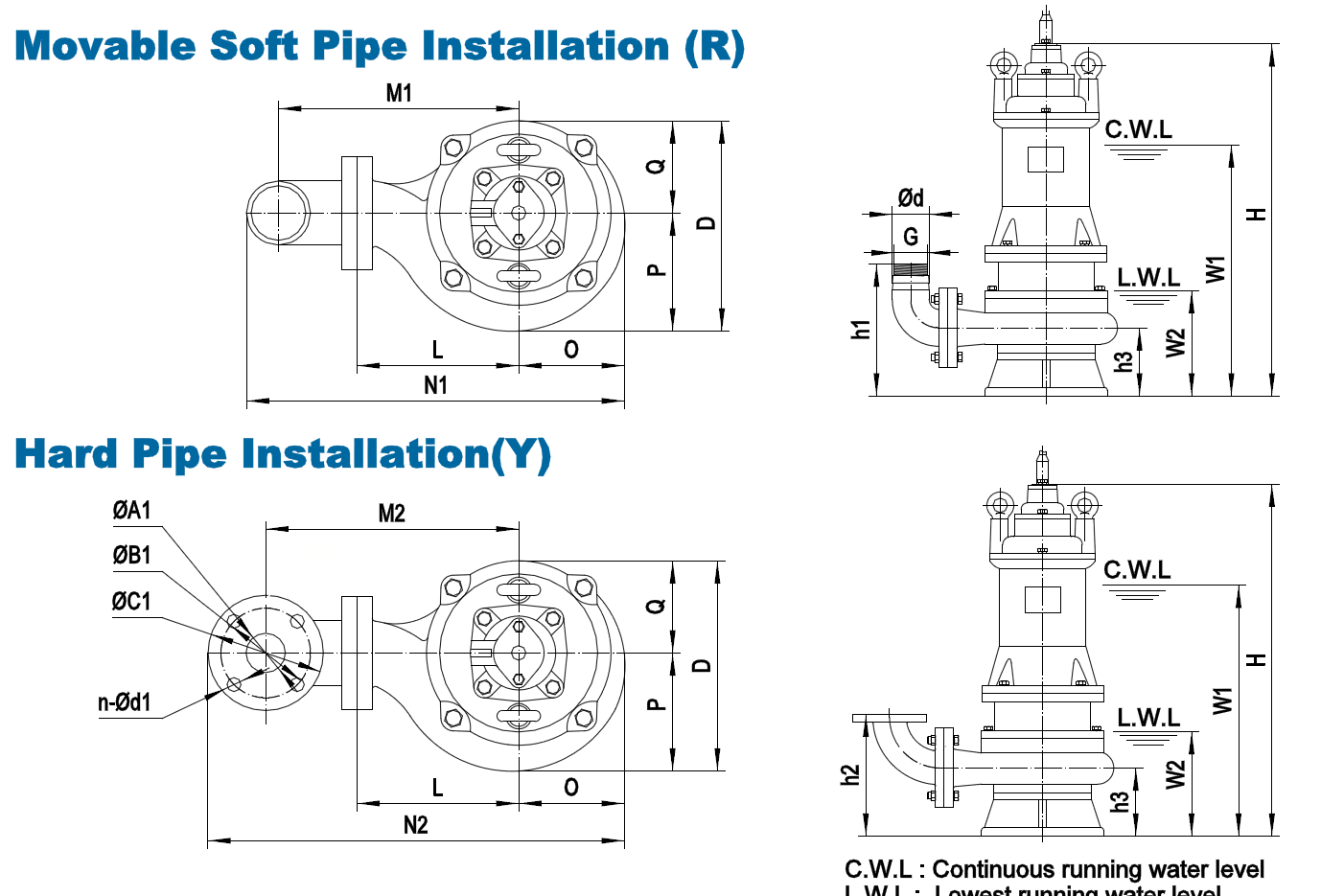

The B-HT series high-temperature submersible electric pump can handle liquids up to 80 degrees Celsius. The insulation level, rubber material, bearings, and lubrication of the motor are upgraded on the basis of the standard type (handling liquids up to 40 degrees Celsius). The pumps are suitable for movable soft pipe, fixed hard pipe and auto-coupling installation.
Application:
Specification:
Discharge Bore : 50-150mm
Insulation class : H
Protection class : IP68
Water temperature : up to 80℃
PH : 6 to 10
Density of liquid : 1.05g/cm³
Power supply :
three phase 380V ±10%, 50Hz
three phase 380V ±10%, 60Hz
Capacity : up to 200m³/h
Head : up to 47m
Maximum immersion depth : 10m
Cable length : 8m
Cabtyre cable : Chloroprene rubber
