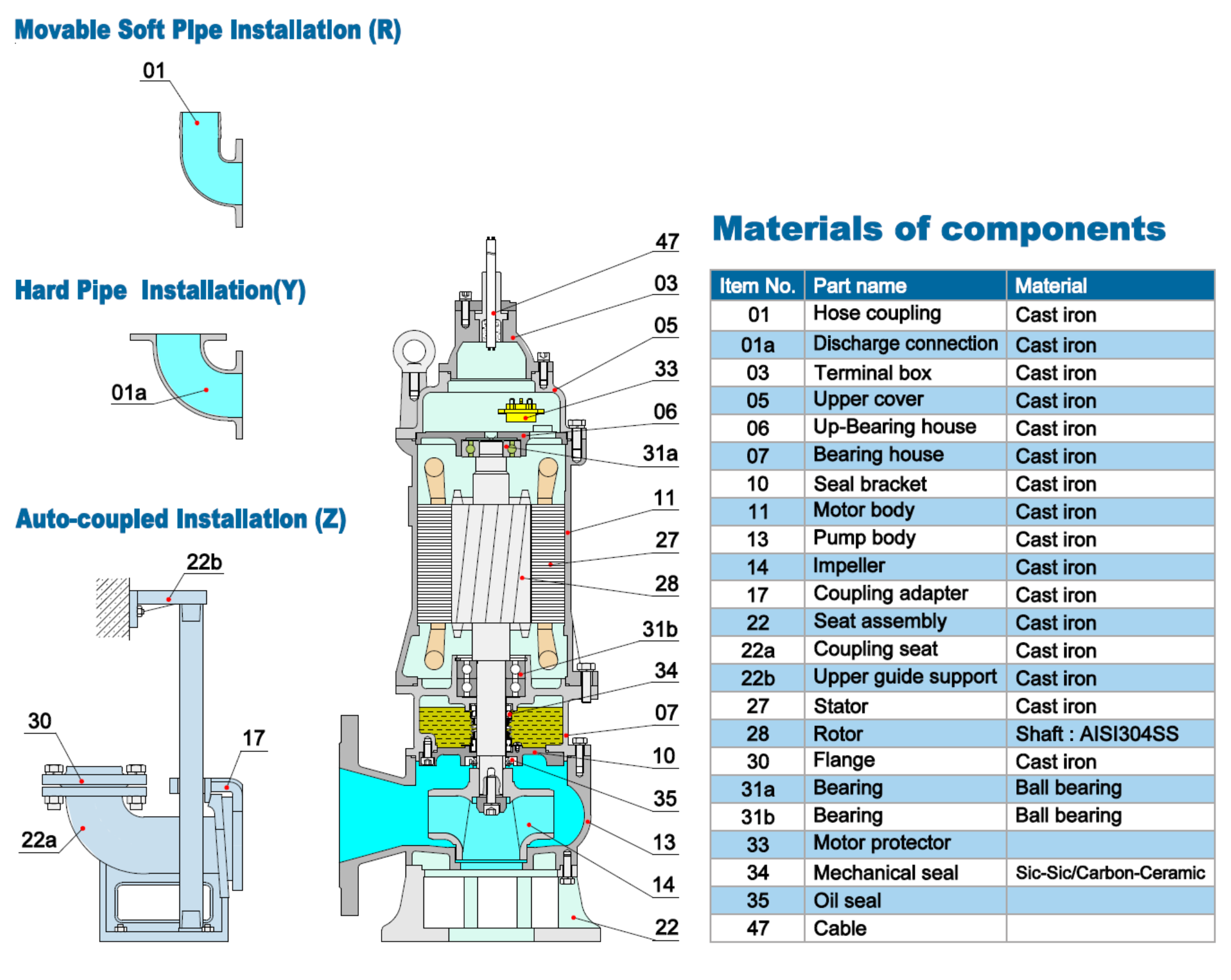

Structure Characteristics:
B pump incorporates a channel impeller developed exclusively for sewage pumps. The impeller has a wide channel extending from inlet to exit, which prevents internal clogging by solids sucked in the inlet.
Application:
For waste water discharge of industry, shopping mall, hospital, hotel. For domestic sewage and storm-water drainage of uptown, parking lot and municipal engineering. For sewage discharge of sewage treatment plant and farm. For pumping muddy water and lye of construction factory and mine. For pumping clean water of agriculture and aquaculture.

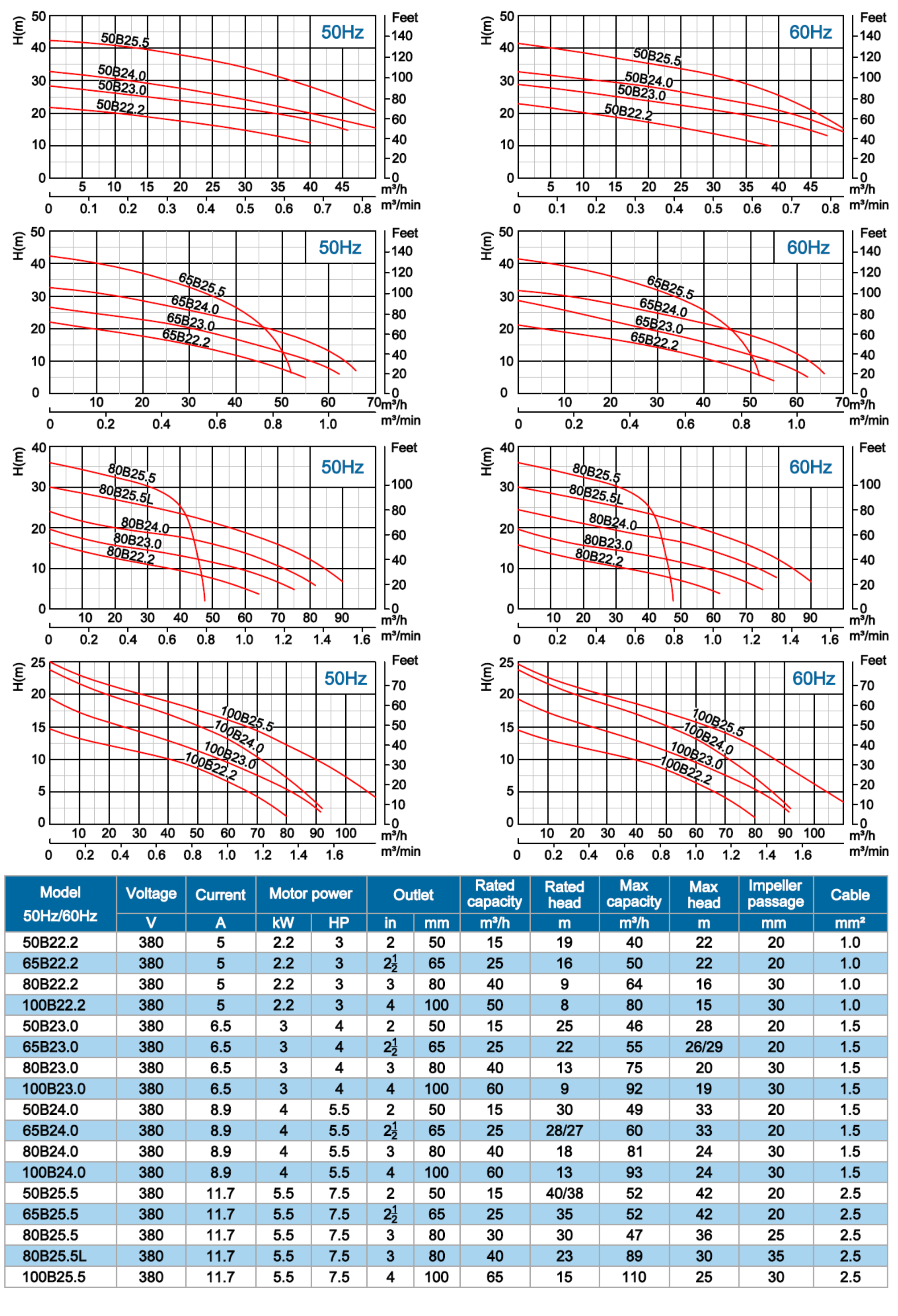

Specification:
Insulation class: F
Protection class: IP68
Water temperature: up to 40℃
PH: 6 -10
Density of liquid: 1.3g/cm³
Power supply: three-phase 380V±10%, 50Hz
three-phase 380V±10%, 60Hz
single-phase 220V±10%, 50Hz
single-phase 220V±10%, 60Hz
Motor protection: built in
Capacity: up to 110m³/h
Head: up to 42m
Maximum immersion depth: 10m
Cable length: 8m
