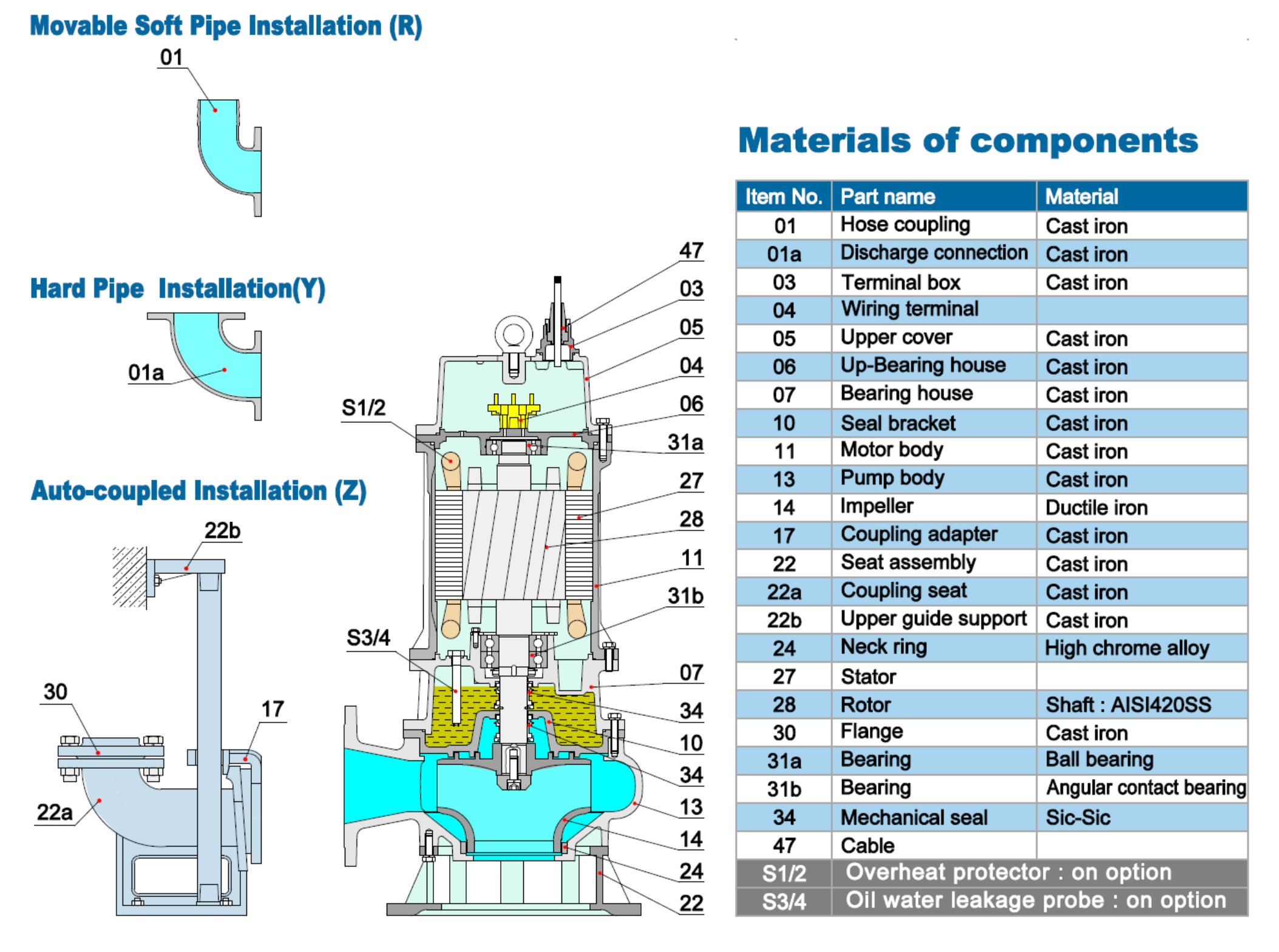

Structure Characteristics:
B pump incorporates a channel impeller developed exclusively for sewage pumps. The impeller has a wide channel extending from inlet to exit, which prevents internal clogging by solids sucked in the inlet.
Application:
For waste water discharge of industry, shopping mall, hospital, hotel. For domestic sewage and storm-water drainage of uptown, parking lot and municipal engineering. For sewage discharge of sewage treatment plant and farm. For pumping muddy water and lye of construction factory and mine. For pumping clean water of agriculture and aquaculture.

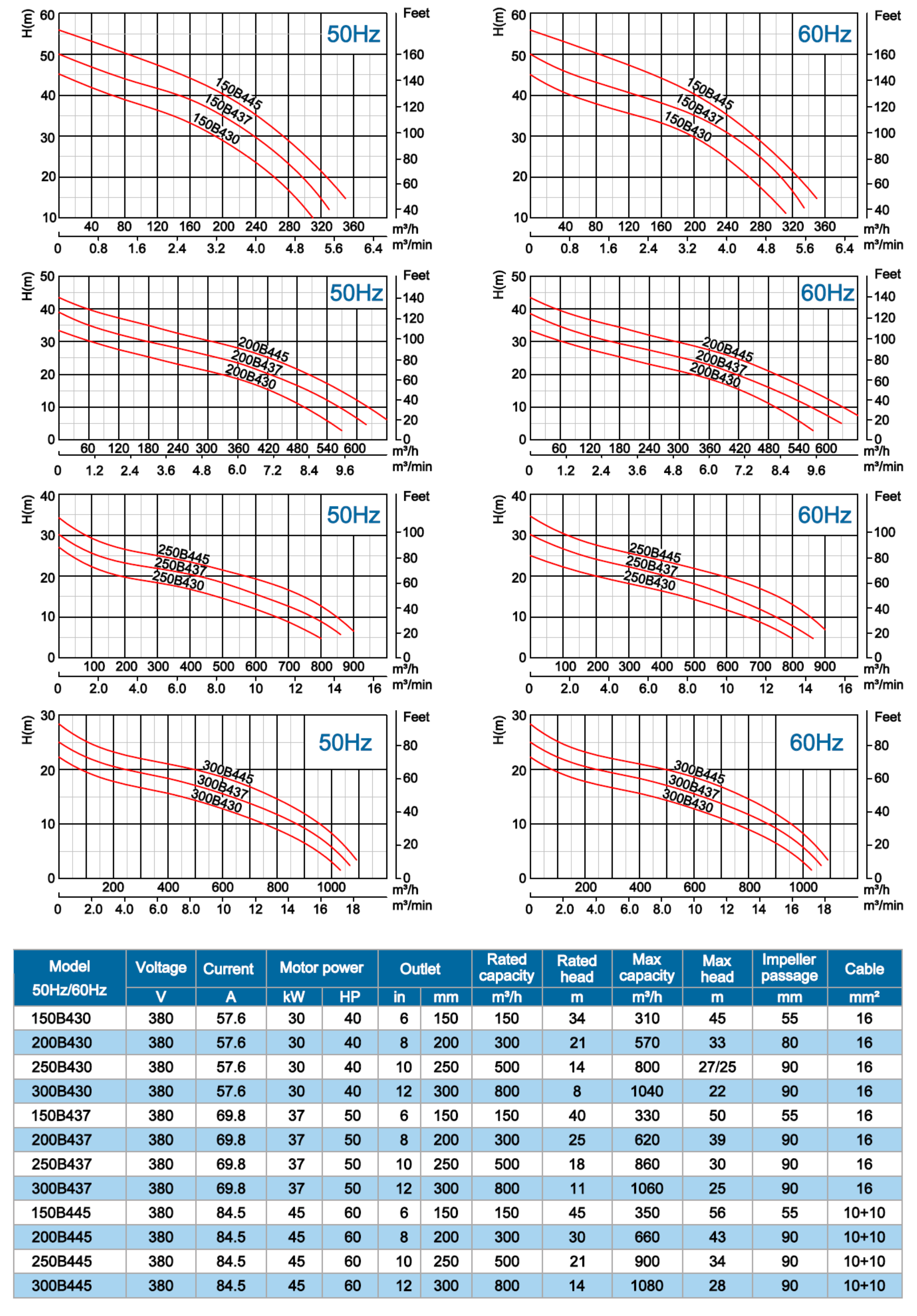

Specification:
Insulation class: F
Protection class: IP68
Starting method: ≥45kW star-Delta
Water temperature: up to 40℃
PH: 6 -10
Density of liquid: up to 1.3g/cm³
Power supply: three-phase 380V±10%, 50Hz
three-phase 380V±10%, 60Hz
Capacity: up to 1080m³/h
Head: up to 56m
Maximum immersion depth: 20m
Cable length: 8m
